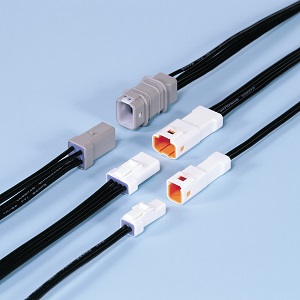

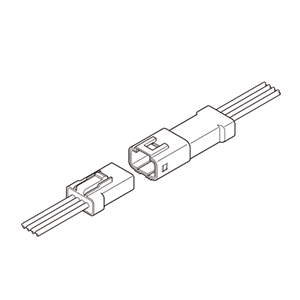

JWPF connector (Wire-to-Wire)
This JWPF connector can be used for the place of which especially waterproof is required.
This is wire-to-wire connector and has water ingress protection with an IPX7 rating per IEC 60529 (grade 7 per JIS C 0920).
Product Profile
SeriesJWPF connector (Wire-to-Wire)
CategoryWire-to-Wire Connectors
Wiring
type		Crimp style
Panel
mounting		Free-hanging
Array
(Insertion part)		Single-row, Dual-row
LockSecure lock (Inner), Secure lock (Center)
WaterproofIPX7
Connection
variations		Wire-to-board type available
StandardIEC 60529 IPX7, TÜV, UL
Specification
Pitch2mm
Circuit2, 3, 4, 6, 8
Current
rating		3 A AC/DC (AWG #22)
Voltage
rating		100 V AC/DC
Temperature
range		-55℃ to +85℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
Conductor
size		AWG #26,#24,#22
0.13mm2 to 0.33mm2
Insulation O.D.φ1.4mm to φ1.7mm
RemarksWire-to-Board type available
Catalog Catalog Manual Manual
Shopping Site JWPF connector (Wire-to-Wire) JWPF connector (Wire-to-Wire)

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
102R-JWPF-VSLE-SDownloadDownloadDownloadDownload
202T-JWPF-VSLE-SDownloadDownloadDownloadDownload
303R-JWPF-VSLE-SDownloadDownloadDownloadDownload
403T-JWPF-VSLE-SDownloadDownloadDownloadDownload
504R-JWPF-VSLE-SDownloadDownloadDownloadDownload
604T-JWPF-VSLE-SDownloadDownloadDownloadDownload
706R-JWPF-VSLE-DDownloadDownloadDownloadDownload
806T-JWPF-VSLE-DDownloadDownloadDownloadDownload
908R-JWPF-VSLE-DDownloadDownloadDownloadDownload
1008T-JWPF-VSLE-DDownloadDownloadDownloadDownload
11SWPR-001T-P025DownloadDownloadDownloadDownload
12SWPT-001T-P025DownloadDownloadDownloadDownload
