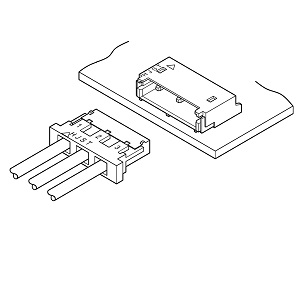

BH connector (4.0 mm pitch)
Low profile connectors with high withstanding voltage, designed for connecting liquid crystal display back light lamps to their starters.
Product Profile
SeriesBH connector (4.0 mm pitch)
CategoryCrimp Style Connectors (Wire-to-Board type)
PC board
mounting		SMT
Mating
direction		Side entry
Array
(Insertion part)		Single-row
LockFriction lock
Connection
variations		Wire-to-wire type available
StandardCSA, UL
OthersCCFL power supply
Specification
Pitch4mm
Circuit2, 3, 4, 5
Current
rating		1 A AC/DC (AWG #22)
Voltage
rating		600 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,800 VAC for one minute.
Conductor
size		AWG #28,#26,#24,#22
0.08mm2 to 0.33mm2
Insulation O.D.φ1.6mm to φ2.4mm
RemarksWire-to-Wire type available (BHM connector)
Catalog Catalog Manual Manual
Shopping Site BH connector (4.0 mm pitch) BH connector (4.0 mm pitch)

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1BHR-02VS-1DownloadDownloadDownloadDownload
2BHR-03VS-1DownloadDownloadDownloadDownload
3BHR-04VS-1DownloadDownloadDownloadDownload
4BHR-05VS-1DownloadDownloadDownload
5SBH-001T-P0.5Download
6SM02(4.0)B-BHS-1-TBDownloadDownloadDownloadDownload
7SM03(4.0)B-BHS-1-TBDownloadDownloadDownloadDownload
8SM03(7-D1)B-BHS-1N-TBDownloadDownloadDownload
9SM04(4.0)B-BHS-1-TBDownloadDownloadDownloadDownload
10SM04(9-E2)B-BHS-1-TBDownloadDownloadDownload
