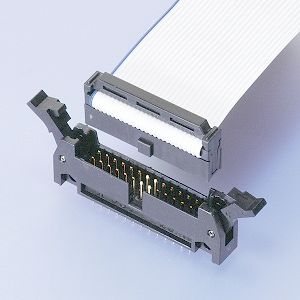

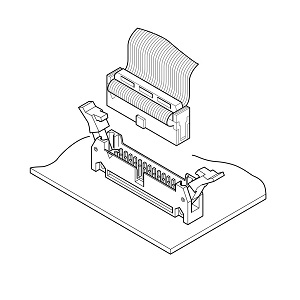

RA connector IDC type
Product Profile
SeriesRA connector IDC type
CategoryRibbon Cable Connectors
TypeIDC style
Specification
Pitch2.54mm
Current rating1.0A (AWG#28)
Voltage rating300V
PC board mounting directionTop entry, Side entry
Product description
Connectors for 1.27mm pitch ribbon cable
*Twin U-slot ID section
*Selective gold-plated posts
*The RA series receptacles and header are interchangeable with the similar type connectors commercially available. Contact JST for details.

RA connector IDC type



pdf Catalog pdf Manual 3d 3D Data
ProductIGESSTEPAcrobat3D
1RA-H101SD-1190DownloadDownloadDownload
2RA-H101TD-1190DownloadDownloadDownload
3RA-H141SD-1190DownloadDownloadDownload
4RA-H141TD-1190DownloadDownloadDownload
5RA-H161SD-1190DownloadDownloadDownload
6RA-H161TD-1190DownloadDownloadDownload
7RA-H201SD-1190DownloadDownloadDownload
8RA-H201TD-1190DownloadDownloadDownload
9RA-H261SD-1190DownloadDownloadDownload
10RA-H261TD-1190DownloadDownloadDownload
11RA-H341SD-1190DownloadDownloadDownload
12RA-H341TD-1190DownloadDownloadDownload
13RA-H401SD-1190DownloadDownloadDownload
14RA-H401TD-1190DownloadDownloadDownload
15RA-H501SD-1190DownloadDownloadDownload
16RA-H501TD-1190DownloadDownloadDownload
17RA-H502SD-1190DownloadDownloadDownload
18RA-H502TD-1190DownloadDownloadDownload
19RA-H601SD-1190DownloadDownloadDownload
20RA-H601TD-1190DownloadDownloadDownload
21RA-H602SD-1190DownloadDownloadDownload
22RA-H602TD-1190DownloadDownloadDownload
23RA-S101T-1290DownloadDownloadDownload
24RA-S141T-1290DownloadDownloadDownload
25RA-S161T-1290DownloadDownloadDownload
26RA-S201T-1290DownloadDownloadDownload
27RA-S261T-1290DownloadDownloadDownload
28RA-S341T-1290DownloadDownloadDownload
29RA-S401T-1290DownloadDownloadDownload
30RA-S501T-1290DownloadDownloadDownload
31RA-S502T-1290DownloadDownloadDownload
32RA-S601T-1290DownloadDownloadDownload
33RA-S602T-1290DownloadDownloadDownload
