SUR connector
Product Profile
SeriesSUR connector
CategoryInsulation Displacement Connectors (Wire-to-Board type)
TypeIDC style, Compact type, Low-profile type
Disconnectable type
Specification
Pitch0.8mm
Current rating0.5A (AWG#32)
0.2A (AWG#36)
Voltage rating30V
PC board mounting directionTop entry, Side entry
Product description

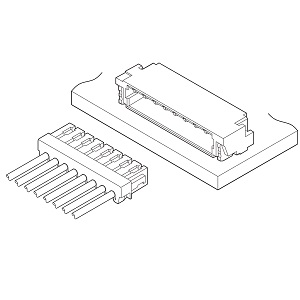

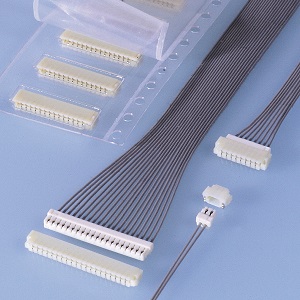

The world's first 0.8mm pitch wire-to-board insulation displacement connector.
*Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment.

SUR connector



pdf Catalog pdf Manual 3d 3D Data
ProductIGESSTEPAcrobat3D
102SUR-32SDownloadDownloadDownload
202SUR-36LDownloadDownloadDownload
303SUR-32SDownloadDownloadDownload
403SUR-36LDownloadDownloadDownload
504SUR-32SDownloadDownloadDownload
604SUR-36LDownloadDownloadDownload
705SUR-32SDownloadDownloadDownload
805SUR-36LDownloadDownloadDownload
906SUR-32SDownloadDownloadDownload
1006SUR-36LDownloadDownloadDownload
1108SUR-32SDownloadDownloadDownload
1208SUR-36LDownloadDownloadDownload
1310SUR-32SDownloadDownloadDownload
1410SUR-36LDownloadDownloadDownload
1512SUR-32SDownloadDownloadDownload
1612SUR-36LDownloadDownloadDownload
1714SUR-32SDownloadDownloadDownload
1814SUR-36LDownloadDownloadDownload
1915SUR-32SDownloadDownloadDownload
2015SUR-36LDownloadDownloadDownload
2116SUR-32SDownloadDownloadDownload
2216SUR-36LDownloadDownloadDownload
2317SUR-32SDownloadDownloadDownload
2417SUR-36LDownloadDownloadDownload
2520SUR-32SDownloadDownloadDownload
2620SUR-36LDownloadDownloadDownload
2722SUR-32SDownloadDownloadDownload
2822SUR-36LDownloadDownloadDownload
29BM02B-SURS-TFDownloadDownloadDownload
30BM03B-SURS-TFDownloadDownloadDownload
31BM04B-SURS-TFDownloadDownloadDownload
32BM05B-SURS-TFDownloadDownloadDownload
33BM06B-SURS-TFDownloadDownloadDownload
34BM08B-SURS-TFDownloadDownloadDownload
35BM10B-SURS-TFDownloadDownloadDownload
36BM12B-SURS-TFDownloadDownloadDownload
37BM14B-SURS-TFDownloadDownloadDownload
38BM15B-SURS-TFDownloadDownloadDownload
39BM16B-SURS-TFDownloadDownloadDownload
40BM17B-SURS-TFDownloadDownloadDownload
41BM20B-SURS-TFDownloadDownloadDownload
42SM02B-SURS-TFDownloadDownloadDownload
43SM03B-SURS-TFDownloadDownloadDownload
44SM04B-SURS-TFDownloadDownloadDownload
45SM05B-SURS-TFDownloadDownloadDownload
46SM06B-SURS-TFDownloadDownloadDownload
47SM08B-SURS-TFDownloadDownloadDownload
48SM10B-SURS-TFDownloadDownloadDownload
49SM12B-SURS-TFDownloadDownloadDownload
50SM14B-SURS-TFDownloadDownloadDownload
51SM15B-SURS-TFDownloadDownloadDownload
52SM16B-SURS-TFDownloadDownloadDownload
53SM17B-SURS-TFDownloadDownloadDownload
54SM20B-SURS-TFDownloadDownloadDownload
55SM22B-SURS-TFDownloadDownloadDownload
