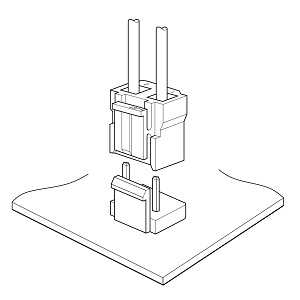

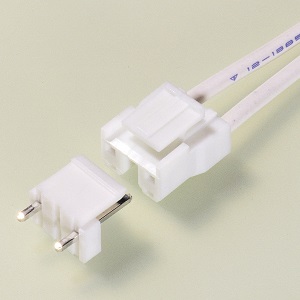

VA connector
This 7.92 mm pitch large current carrying capacity connector is used with primary power supply circuits and various other circuits requiring large currents. It features an anti-misinsertion construction and a reliable locking mechanism to ensure maximum safety.
Product Profile
SeriesVA connector
CategoryCrimp Style Connectors (Wire-to-Board type)
PC board
mounting		Through-hole
Mating
direction		Side entry, Top entry
Array
(Insertion part)		Single-row
LockSecure lock (Outer), Secure lock (Center)
StandardCSA, TÜV, UL
Specification
Pitch7.92mm
Circuit2
Current
rating		7 A AC/DC (AWG #18)
Voltage
rating		250 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,200 VAC for one minute.
Conductor
size		AWG #20,#18
0.5mm2 to 0.83mm2
Insulation O.D.φ1.9mm to φ3.7mm
Catalog Catalog Manual Manual
Shopping Site VA connector VA connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1B2P-VADownload
2B2P3-VHDownloadDownloadDownloadDownload
3B2P3S-VHDownloadDownloadDownloadDownload
4S2P3-VHDownloadDownloadDownloadDownload
5SVA-41T-P1.1Download
6VAR-2DownloadDownloadDownloadDownload
