VR connector

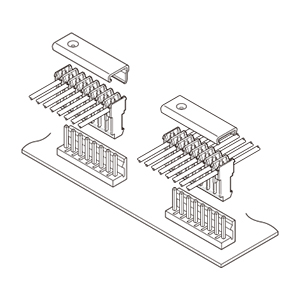

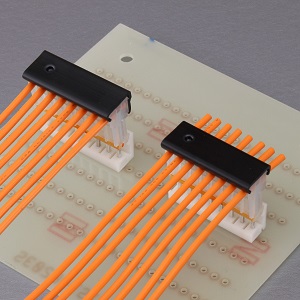

The VR series is a 3.96 mm pitch wire-to-board connector for 7 A rated power supply circuits. Furthermore, it can acccommodate AWG #18 wire, which is rare for an IDC connector.
Product Profile
SeriesVR connector
CategoryInsulation Displacement Connectors (Wire-to-Board type)
PC board
mounting		Through-hole
Mating
direction		Side entry, Top entry
Array
(Insertion part)		Single-row
LockFriction lock
StandardCSA, UL
OthersDaisy chain, Side-Feed
Specification
Pitch3.96mm
Circuit2, 3, 4, 5, 6, 8, 9, 10
Current
rating		7 A AC/DC (AWG #18)
Voltage
rating		250 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,500 VAC for one minute.
Conductor
size		AWG #26,#24,#22,#20,#18
Insulation O.D.φ1.3mm to φ2.1mm
RemarksApplicable wire: UL1007
Catalog Catalog
Shopping Site VR connector VR connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
102VR-ANDownload
202VR-BODownload
303VR-2RDownload
403VR-4KDownload
503VR-ANDownload
603VR-BODownload
704VR-ANDownload
804VR-BODownload
905VR-BODownload
1006VR-ANDownload
1106VR-BODownload
1208VR-2RDownload
1308VR-ANDownload
1408VR-BODownload
1510VR-6SDownload
1610VR-BODownload
17B10P-VRDownload
18B10PS-VRDownload
19B2P-VRDownloadDownloadDownloadDownload
20B2PS-VRDownload
21B3P-VRDownload
22B3PS-VRDownload
23B4P-VRDownload
24B4PS-VRDownload
25B5P-VRDownload
26B5PS-VRDownload
27B6P-VRDownload
28B6PS-VRDownload
29B8P-VRDownload
30B8PS-VRDownload
31B9P-VRDownload
32VRC-02DDownload
33VRC-03DDownload
34VRC-03EDownload
35VRC-04DDownload
36VRC-04EDownload
37VRC-05EDownload
38VRC-06DDownload
39VRC-06EDownload
