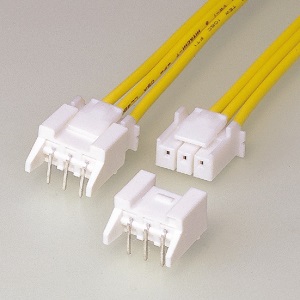

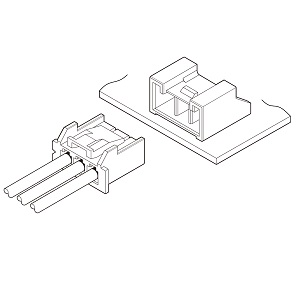

VU connector
VU connector is small type 3.96 mm pitch PC board connector for large current and has the high reliability in a power supply circuit, considering the fully shrouded connector header structure against "vibrating connector" and "distored extraction".
Product Profile
SeriesVU connector
CategoryCrimp Style Connectors (Wire-to-Board type)
PC board
mounting		Through-hole
Mating
direction		Side entry, Top entry
Array
(Insertion part)		Single-row
LockSecure lock (Outer), Secure lock (Center)
StandardUL
Specification
Pitch3.96mm
Circuit3
Current
rating		5 A AC/DC (AWG #18)
Voltage
rating		250 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,500 VAC for one minute.
Conductor
size		AWG #22,#20,#18
0.33mm2 to 0.83mm2
Insulation O.D.φ1.7mm to φ3mm
Catalog Catalog Manual Manual
Shopping Site VU connector VU connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1B03B-VUSS-1DownloadDownloadDownloadDownload
2S03B-VUSS-1DownloadDownloadDownloadDownload
3SVU-21T-P0.6DownloadDownloadDownloadDownload
4VURP-03V-SDownloadDownloadDownloadDownload
