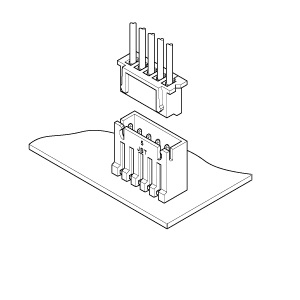

XH connector (High box type)
This is a XH connector high-box type with a mounting height of 17.0 mm and a thickness of 5.8 mm. It provides stable state contact even for micro-voltage and current circuits.
Product Profile
SeriesXH connector (High box type)
CategoryCrimp Style Connectors (Wire-to-Board type)
PC board
mounting		Through-hole
Mating
direction		Top entry
Array
(Insertion part)		Single-row
LockFriction lock
StandardCSA, UL
OthersPotting
Specification
Pitch2.5mm
Circuit2, 3, 4, 5, 6, 7, 8, 9, 10
Current
rating		3 A AC/DC (AWG #22)
Voltage
rating		250 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
Conductor
size		AWG #30,#28,#26,#24,#22
0.05mm2 to 0.33mm2
Insulation O.D.φ0.9mm to φ1.9mm
RemarksStandard type available
Catalog Catalog
Shopping Site XH connector (High box type) XH connector (High box type)

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1BH10B-XH-2DownloadDownloadDownloadDownload
2BH2B-XH-2DownloadDownloadDownloadDownload
3BH3B-XH-2DownloadDownloadDownloadDownload
4BH4B-XH-2DownloadDownloadDownloadDownload
5BH5B-XH-2DownloadDownloadDownloadDownload
6BH6B-XH-2DownloadDownloadDownloadDownload
7BH7B-XH-2DownloadDownloadDownloadDownload
8BH8B-XH-2DownloadDownloadDownloadDownload
9BH9B-XH-2DownloadDownloadDownloadDownload
10SXH-001T-P0.6DownloadDownloadDownloadDownload
11SXH-002T-P0.6DownloadDownloadDownloadDownload
12XHP-10DownloadDownloadDownloadDownload
13XHP-2DownloadDownloadDownloadDownload
14XHP-3DownloadDownloadDownloadDownload
15XHP-4DownloadDownloadDownloadDownload
16XHP-5DownloadDownloadDownloadDownload
17XHP-6DownloadDownloadDownloadDownload
18XHP-7DownloadDownloadDownloadDownload
19XHP-8DownloadDownloadDownloadDownload
20XHP-9DownloadDownloadDownloadDownload
