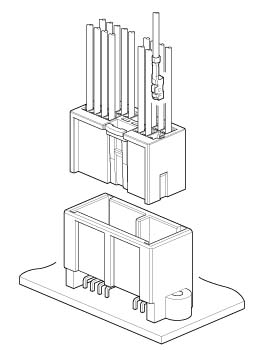

MIO connector
Low profile type connector for interface of automotive electrical equipment.
Product Profile
SeriesMIO connector
CategoryAutomotive Connectors
Sub
category		Wire-to-Board
PC board
mounting		Through-hole, Screw lock
Mating
direction		Top entry
Array
(Insertion part)		Dual-row
LockSecure lock (Inner)
RetainerRetainer
Specification
Circuit16
Current
rating		5 A AC/DC (Single circuit, 0.5 mm2)
Voltage
rating		12 V AC/DC
Temperature
range		-40℃ to +105℃
Insulation
resistance		100MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
Conductor
size		0.2mm2 to 0.5mm2
Insulation O.D.φ1.23mm to φ1.8mm
RemarksApplicable wire: AVSS, CAVS, SE
Catalog Catalog
Shopping Site MIO connector MIO connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1B16B-MIOSDownloadDownloadDownloadDownload
2MIOPB-16-SSDownloadDownloadDownloadDownload
3SHCM-A03T-P025Download
4SHCM-A04T-P025Download
