HTB connector
pdf Catalog 2D3d 3D Data
ProductIGESSTEP3D-PDF
130H-HTBK-06-TFDownloadDownloadDownload
230RS-HTBK-06-TFDownloadDownloadDownload
340H-HTBK-06-TFDownloadDownloadDownload
440R16-HTBK-06-TFDownloadDownloadDownload
Shopping Site
Product Profile
SeriesHTB connector
CategoryBoard-to-Board Connectors
TypeAbsorbing PC board misalignment type, PC board horizontal mounting type
Absorbing PC board misalignment type, PC board perpendicular mounting type
FeatureAbsorbing PC board misalignment
Specification
Pitch0.635mm
Current rating0.5A
Voltage rating50V
PC board mounting directionParallel, Perpendicular
Product description

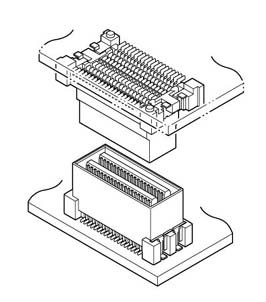

This HTB connector is 0.635mm pitch SMT type board-to-board connector with parallel and perpendicular connection.

HTB connector
