LEX connector
pdf Catalog 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1EM02B-LEXSS-TF(HF)DownloadDownloadDownload
2EM04B-LEXSS-TF(HF)DownloadDownloadDownload
3LEXR-02V-S (HF)DownloadDownloadDownload
4LEXR-04V-S (HF)DownloadDownloadDownload
5SSFH-001T-P0.5DownloadDownloadDownloadDownload
6SSFH-002T-P0.5DownloadDownloadDownloadDownload
Shopping Site
Product Profile
SeriesLEX connector
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeCrimp style, With secure locking device
Crimp style, Disconnectable type
FeatureFor LED lamp
Specification
Pitch2.5mm
Current rating3A (AWG#22)
Voltage rating300V
Product description

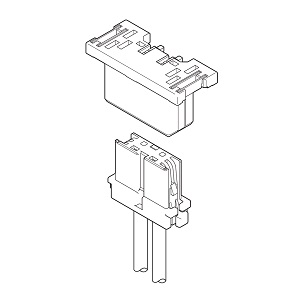

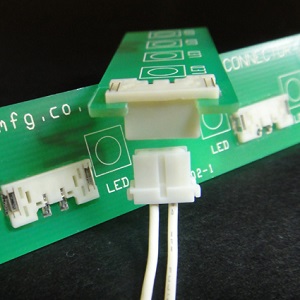

Considering about luminescence property of LED package, this LEX connector is designed as low profile bottom type connector for LED lighting equipment, and achieves the space saving at the connector mounting side. In consideration of connector mating operation, secure lock and mechanism for preventing wrong insertion are provided. With the assumption that the load may be applied to the soldering part when mating the connector, the strength of soldering part after mounting the connector on PCB has been largely improved.

LEX connector
