FAH connector

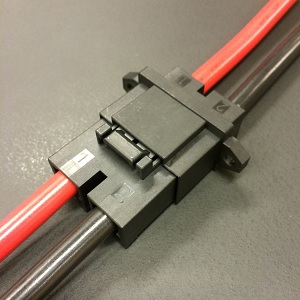

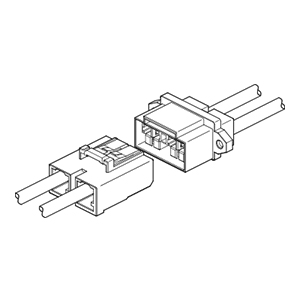

This is a wire-to-wire connector with a 50 A maximum current rating. It is a robust, one-touch, disconnectable connector for high current applications. In addition, both male and female contacts feature the same structure and design. Both tab and receptable housings are finger-protected to prevent electrical shock.
Product Profile
SeriesFAH connector
CategoryWire-to-Wire Connectors
Wiring
type
Crimp style
Panel
mounting
Screw lock
Array
(Insertion part)
Single-row
LockSecure lock (Inner), Secure lock (Center)
Mating
assist
Keying
StandardTÜV, UL
Specification
Pitch16mm
Circuit1, 2
Current
rating
50 A AC/DC (AWG #8)
35 A AC/DC (AWG #10)
Voltage
rating
600 V AC/DC
Temperature
range
-25℃ to +85℃
Insulation
resistance
100MΩ min.
Withstanding
voltage
There shall be no breakdown or flashover while applying 3,000 VAC for one minute.
Conductor
size
AWG #10,#8
5.3mm2 to 8.4mm2
Insulation O.D.φ4.6mm to φ7.8mm
Catalog Catalog Manual Manual
Shopping Site FAH connector FAH connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1FAH-F01V-KL1-ADownloadDownloadDownloadDownload
2FAH-F01V-RL1-BDownloadDownloadDownloadDownload
3FAH-F02V-KDownloadDownloadDownloadDownload
4FAH-M01V-KL1-ADownloadDownloadDownloadDownload
5FAH-M01V-RL1-BDownloadDownloadDownloadDownload
6FAH-M02V-KDownloadDownloadDownloadDownload
7SFAH-91GC(Z)-M3Download
8SFAH-A1GC(Z)-M3Download
