J.S.T. Mfg. Co., Ltd.

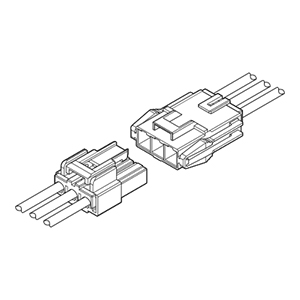

VL connector HIGH CURRENT TYPE (Wire-to-Wire)

This 6.2 mm pitch wire-to-wire connector is designed for high current applications, made possible by the use of high conductivity materials.

Product Profile

Series	VL connector HIGH CURRENT TYPE (Wire-to-Wire)
Category	Wire-to-Wire Connectors
Wiring type	Crimp style
Panel mounting	Panel lock
Array (Insertion part)	Single-row, Dual-row
Lock	Secure lock (Outer), Secure lock (Inner), Secure lock (Center)
Retainer	Retainer
Connection variations	Wire-to-board type available
Standard	CSA, TÜV, UL, PSE
Others	2 wire crimping

Specification

Pitch	6.2mm
Circuit	1, 2, 3, 4
Current rating	23 A AC/DC (1, 2 circuits, AWG #12) 8 A AC/DC (4 circuits, AWG #20)
Voltage rating	600 V AC/DC
Temperature range	-25℃ to +90℃
Insulation resistance	1,000MΩ min.
Withstanding voltage	There shall be no breakdown or flashover while applying 2,000 VAC for one minute.
Conductor size	AWG #20,#18,#16,#14,#12 0.5mm² to 3.5mm²
Insulation O.D.	φ1.9mm to φ4.1mm
Remarks	Wire-to-Board type available
