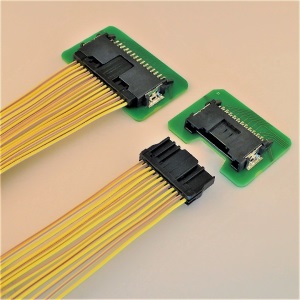

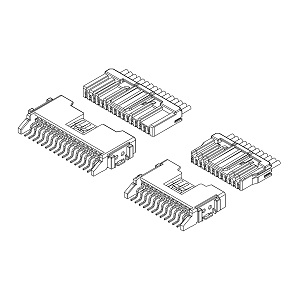

CMEC connector
Developed in pursuit of miniaturization and low profile as surface mounting type connector for automotive.
Product Profile
SeriesCMEC connector
CategoryAutomotive Connectors
Sub
category		Wire-to-Board
PC board
mounting		SMT
Mating
direction		Side entry
Terminal
size		0.5 terminal
Array
(Insertion part)		Single-row
LockSecure lock (Outer)
RetainerTPA, Retainer
Specification
Pitch2mm
Circuit12, 16
Current
rating		3 A AC/DC
Temperature
range		-40℃ to +105℃
Insulation
resistance		100MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
Conductor
size		AWG #22
0.3mm2 to 0.35mm2
Insulation O.D. to φ1.4mm
RemarksApplicable wire: AESSX, FLRY-A
Catalog Catalog
Shopping Site CMEC connector CMEC connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
112CMEC-B-1A-K-ADownloadDownloadDownloadDownload
212CMEC-B-1A-K-BDownloadDownloadDownloadDownload
316CMEC-B-1A-K-ADownloadDownloadDownloadDownload
416CMEC-B-1A-K-BDownloadDownloadDownloadDownload
5SM12B-CMECK-1A-ADownloadDownloadDownloadDownload
6SM12B-CMECK-1A-BDownloadDownloadDownloadDownload
7SM16B-CMECK-1A-ADownloadDownloadDownloadDownload
8SM16B-CMECK-1A-BDownloadDownloadDownloadDownload
9SMEC-A021T-M0.5Download
