HOME > Product Profile

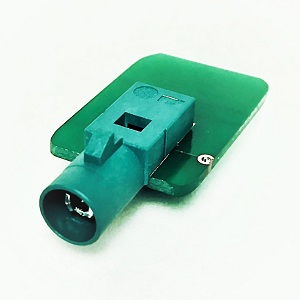

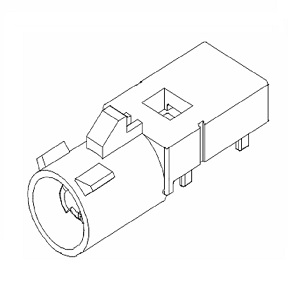

JRF connector (Wire-to-Board)
pdf Catalog pdf Manual 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SM01B-JRFDNS-1F-TBDownload
2SM01B-JRFDS-1M-TBDownload
3SM01B-JRFES-1C-TBDownload
4SM01B-JRFHS-1G-TBDownload
5SM01B-JRFKS-1A-TBDownload
6SM01B-JRFLES-1Z-TBDownloadDownloadDownloadDownload
7SM01B-JRFLGS-1N-TBDownload
8SM01B-JRFLNS-1I-TBDownload
9SM01B-JRFLPS-1H-TBDownload
10SM01B-JRFMS-1E-TBDownload
11SM01B-JRFNS-1K-TBDownload
12SM01B-JRFPS-1D-TBDownload
13SM01B-JRFRS-1L-TBDownload
14SM01B-JRFWS-1B-TBDownload
Shopping Site
Product Profile
SeriesJRF connector (Wire-to-Board)
CategoryAutomotive Connectors
TypeHigh-speed transmission
For board to wire connection
FeatureHigh-speed transmission

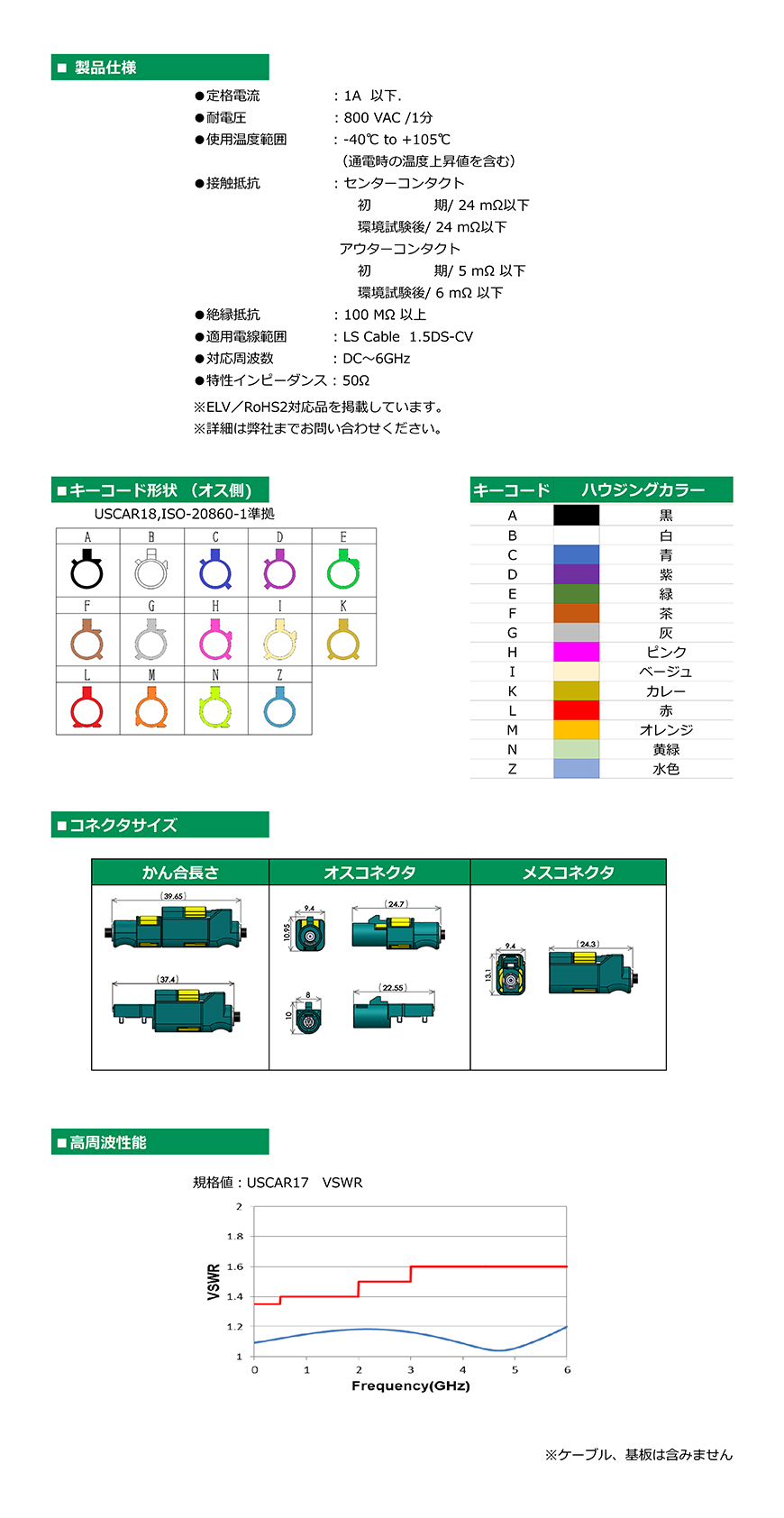

Specification
Current rating1A
Voltage ratingWithstanding voltage: 800 VAC/minute
Product description
Fully compatible and designed based on requirements from the FAKRA RF and USCAR standards for telematics and automotive communications technology.

JRF connector (Wire-to-Board)
