EA2 connector (Top entry type)

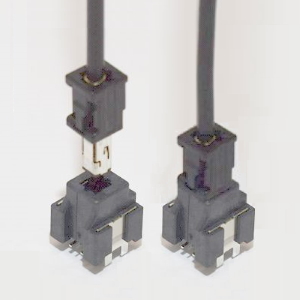

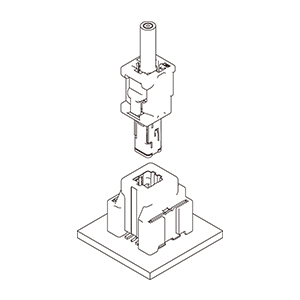

This is compact high-frequency signal connector suitable for in-vehicle equipment with antenna communication (Wi-Fi, Bluetooth). It is also suitable for coaxial video signal transmission in combination with cable-side connectors for noise suppression. It is through-hole reflow (THR) compatible products.
Product Profile
SeriesEA2 connector (Top entry type)
CategoryAutomotive Connectors
Sub
category		Wire-to-Board, Coaxial
PC board
mounting		SMT, Through-hole reflow
Mating
direction		Top entry
LockSecure lock (Inner)
RetainerRetainer
Mating
assist		Keying
Transmission
Electromagnetic		Noise measure, High frequency
ApplicationAntenna comm. device
Specification
Circuit1
Current
rating		1 A AC/DC
Voltage
rating		250 V
Temperature
range		-40℃ to +105℃
RemarksApplicable cable: 1.5D coaxial cable
Catalog Catalog
Shopping Site EA2 connector (Top entry type) EA2 connector (Top entry type)

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1EA2-1PA_REFER_ASSYDownloadDownloadDownload
-
2EA2-PHN-2K
-
-
-
Download
3EA2-PHG-1K
-
-
-
Download
4EA2-PRT-2H
-
-
-
Download
5EA2-SCS542
-
-
-
Download
6EA2-SSP3RPT
-
-
-
Download
7EA2-SSPNP-E-A
-
-
-
Download
8EA2-1RABM-12T210-K2-TLDownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
