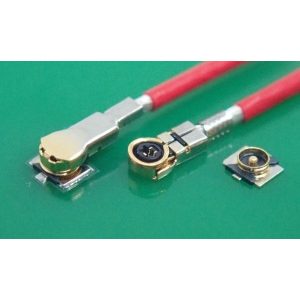

AYU2T connector
The AYU2T is a compact, coaxial connector commonly used in antenna modules for high frequency bands up to 20 GHz.
Product Profile
SeriesAYU2T connector
CategoryCoaxial Connectors
PC board
mounting		SMT

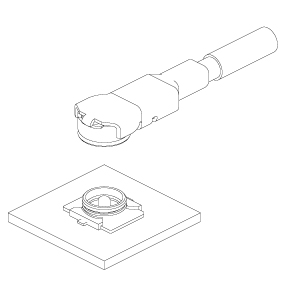

Mating
direction		Top entry
Transmission
Electromagnetic		High frequency
Specification
Circuit1
Current
rating		0.3 A AC/DC
Voltage
rating		30 Vms
Temperature
range		-25℃ to +85℃
Insulation
resistance		500MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 100 VAC for one minute.
Catalog Catalog Manual Manual
Shopping Site AYU2T connector AYU2T connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1AYU2T-1B-GA-GA-ETY(HF)DownloadDownloadDownloadDownload
2AYU2T-1HBR-D100N(HF)DownloadDownloadDownloadDownload
3AYU2T-1HBR-D150N(HF)DownloadDownloadDownloadDownload
4AYU2T-1HBR-D200N(HF)DownloadDownloadDownloadDownload
5AYU2T-1HBR-D250N(HF)DownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
