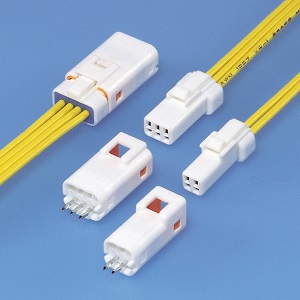

JWPF connector (Wire-to-Board)
This is a 2.0 mm pitch wire-to-board connector with water ingress protection with an IPX7 rating per IEC 60529 (grade 7 per JIS C 0920), suitable for use for the place of which waterproof is required.
Product Profile
SeriesJWPF connector (Wire-to-Board)
CategoryCrimp Style Connectors (Wire-to-Board type)
PC board
mounting		Through-hole
Mating

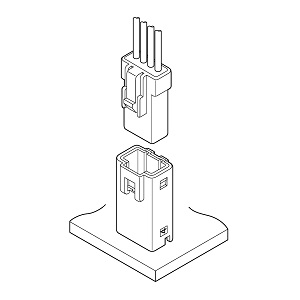

direction		Top entry
Array
(Insertion part)		Single-row, Dual-row
LockSecure lock (Inner), Secure lock (Center)
WaterproofIPX7
Connection
variations		Wire-to-wire type available
StandardIEC 60529 IPX7, UL
OthersPotting
Specification
Pitch2mm
Circuit2, 3, 4, 6, 8
Current
rating		3 A AC/DC (AWG #22)
Voltage
rating		100 V AC/DC
Temperature
range		-55℃ to +85℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
Conductor
size		AWG #26,#24,#22
0.13mm2 to 0.33mm2
Insulation O.D.φ1.4mm to φ1.7mm
RemarksWire-to-Wire type available
Catalog Catalog Manual Manual
Shopping Site JWPF connector (Wire-to-Board) JWPF connector (Wire-to-Board)

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
102R-JWPF-VSLE-SDownloadDownloadDownloadDownload
203R-JWPF-VSLE-SDownloadDownloadDownloadDownload
304R-JWPF-VSLE-SDownloadDownloadDownloadDownload
406R-JWPF-VSLE-DDownloadDownloadDownloadDownload
508R-JWPF-VSLE-DDownloadDownloadDownloadDownload
6B02B-JWPF-SK-RDownloadDownloadDownloadDownload
7B03B-JWPF-SK-RDownloadDownloadDownloadDownload
8B04B-JWPF-SK-RDownloadDownloadDownloadDownload
9B06B-JWPF-SK-RDownloadDownloadDownloadDownload
10B08B-JWPF-SK-RDownloadDownloadDownloadDownload
11SWPR-001T-P025DownloadDownloadDownloadDownload
