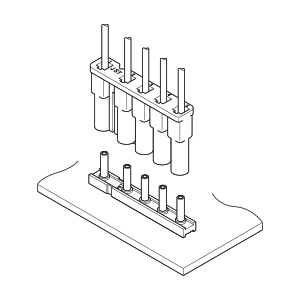

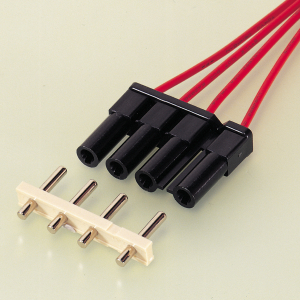

| Series | LV connector |
| Category | Crimp Style Connectors (Wire-to-Board type) |
| PC board mounting | Through-hole |
| Mating direction | Top entry |
| Array (Insertion part) | Single-row |
| Standard | CSA, TÜV, UL |
| Pitch | 8mm |
| Circuit | 1, 2, 3, 4, 5, 6 |
| Current rating | 5 A AC/DC (SVF-01T-2.36N, AWG #20) 7 A AC/DC (SVF-01T-2.36LN, AWG #18) |
| Voltage rating | 250 V AC/DC |
| Temperature range | -25℃ to +85℃ |
| Insulation resistance | 1,000MΩ min. |
| Withstanding voltage | There shall be no breakdown or flashover while applying 1,500 VAC for one minute. |
| Conductor size | AWG #24,#22,#20,#18 0.2mm2 to 0.83mm2 |
| Insulation O.D. | φ1.4mm to φ2.9mm |
| Product | IGES | STEP | 3D-PDF | 2D-PDF | |
| 1 | 2P-LV | Download | |||
| 2 | 2P-LV-P | Download | |||
| 3 | 3P-LV | Download | |||
| 4 | 3P-LV-P | Download | |||
| 5 | 4P-LV | Download | |||
| 6 | 4P-LV-P | Download | |||
| 7 | 5P-LV | Download | |||
| 8 | 5P-LV-P | Download | |||
| 9 | 6P-LV | Download | |||
| 10 | 6P-LV-P | Download | |||
| 11 | B1P-LV-TA | Download | |||
| 12 | B1P-LV-TN | Download | |||
| 13 | B2P-LV-TA | Download | |||
| 14 | B2P-LV-TN | Download | Download | Download | Download |
| 15 | B3P-LV-TA | Download | |||
| 16 | B3P-LV-TN | Download | Download | Download | Download |
| 17 | B4P-LV-TA | Download | |||
| 18 | B4P-LV-TN | Download | |||
| 19 | B5P-LV-TA | Download | |||
| 20 | B5P-LV-TN | Download | |||
| 21 | B6P-LV-TN | Download | |||
| 22 | S1P-LV | Download | |||
| 23 | S1P-LV-P | Download | |||
| 24 | SVF-01T-2.36LN | Download | |||
| 25 | SVF-01T-2.36N | Download |
