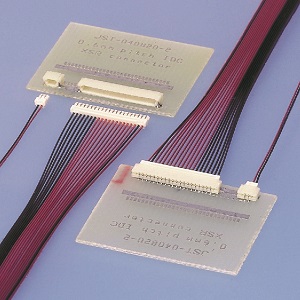

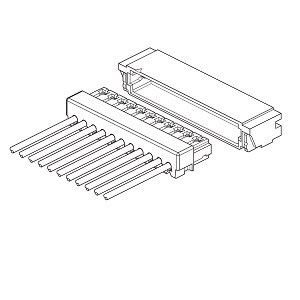

XSR connector
This is the world's smallest 0.6 mm pitch ID connector for discrete wires. This Wire to Board miniaturized connector has a mounting height of 1.45 mm and depth of 3.0 mm.
Product Profile
SeriesXSR connector
CategoryInsulation Displacement Connectors (Wire-to-Board type)
PC board
mounting		SMT
Mating
direction		Side entry
Array
(Insertion part)		Single-row
LockFriction lock
StandardCSA, UL
Specification
Pitch0.6mm
Circuit2, 4, 6, 10, 16, 20, 22
Current
rating		0.2 A AC/DC
Voltage
rating		30 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		100MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 200 VAC for one minute.
Conductor
size		AWG #36
Insulation O.D.φ0.29mm
Catalog Catalog Manual Manual
Shopping Site XSR connector XSR connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
102XSR-36SDownloadDownloadDownloadDownload
204XSR-36SDownloadDownloadDownloadDownload
306XSR-36SDownloadDownloadDownloadDownload
410XSR-36SDownloadDownloadDownloadDownload
516XSR-36SDownloadDownloadDownloadDownload
620XSR-36SDownloadDownloadDownloadDownload
722XSR-36SDownloadDownloadDownloadDownload
8SM02B-XSRS-ETBDownloadDownloadDownloadDownload
9SM04B-XSRS-ETBDownloadDownloadDownloadDownload
10SM06B-XSRS-ETBDownloadDownloadDownloadDownload
11SM10B-XSRS-ETBDownloadDownloadDownloadDownload
12SM16B-XSRS-ETBDownloadDownloadDownloadDownload
13SM20B-XSRS-ETBDownloadDownloadDownloadDownload
14SM22B-XSRS-ETBDownloadDownloadDownloadDownload
