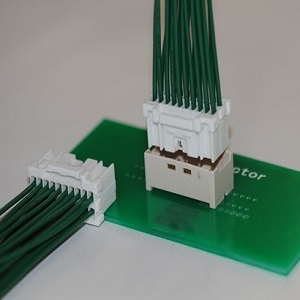

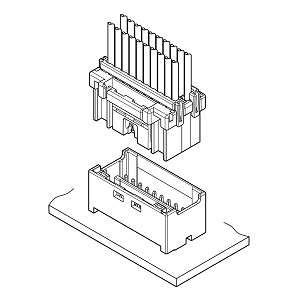

| Series | PID connector |
| Category | Crimp Style Connectors (Wire-to-Board type) |
| PC board mounting | Through-hole |
| Mating direction | Top entry |
| Array (Insertion part) | Dual-row |
| Lock | Secure lock (Inner), Secure lock (Center) |
| Retainer | Retainer |
| Mating assist | Incomplete mating detection |
| Standard | UL |
| Others | Potting |
| Pitch | 2mm |
| Circuit | 10, 12, 14, 16, 18, 20, 22, 24, 26, 30 |
| Current rating | 3 A AC/DC (AWG #22) |
| Voltage rating | 250 V AC/DC |
| Temperature range | -25℃ to +85℃ |
| Insulation resistance | 1,000MΩ min. |
| Withstanding voltage | There shall be no breakdown or flashover while applying 800 VAC for one minute. |
| Conductor size | AWG #26,#24,#22 0.13mm2 to 0.33mm2 |
| Insulation O.D. | φ1mm to φ1.5mm |
