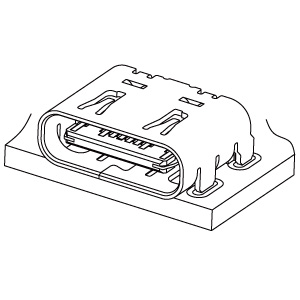

UBC connector (USB2.0 TypeC)
The UBC connector is an USB Type-C compliant interface connector capable of supplying up to 100 W of power.
The receptacle is a 16-pin design capable of transmitting data at speeds of up to 480 Mbps.
Symmetrical plug design, allowing the cable to be inserted in both top and bottom orientations.
Product Profile
SeriesUBC connector (USB2.0 TypeC)
CategoryInterface Connection Connectors
PC board
mounting		SMT
Mating
direction		Side entry
Contact
surface side		Reversible
Transmission
Electromagnetic		High speed
StandardUSB2.0 Type-C
OthersHalogen-free
Specification
Current
rating		1.25 A DC (Vbus (A4, A9, B4, B9), GND (A1, A12, B1, B12), CC1 (A5), CC2 (B5))
0.25 A DC (Other circuits)
Voltage
rating		20 V AC
Temperature
range		-25 ℃ to +85 ℃
Insulation
resistance		100 MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 100 VAC for one minute.
Catalog Catalog Manual Manual
UBC connector (USB2.0 TypeC) UBC connector (USB2.0 TypeC)

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1UBC-RA-TF(HF)DownloadDownloadDownloadDownload
2UBC-RA1-TF(HF)DownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
* For any questions or requests, please contact JST.
