HL connector (Wire-to-Board)
pdf Catalog 2D3d 3D Data Shopping Site
Product Profile
SeriesHL connector (Wire-to-Board)
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeDisconnectable type
Crimp style, Shrouded header type, With inner type secure locking device
FeatureWith secure locking device
Specification
Pitch3.96mm
Current rating7A (4 circuits/AWG#18)
Voltage rating300V
PC board mounting directionTop entry
Product description
The HL connectors can be used for wire-to-wire or wire-to-board connections.
*The inner-housing lock secures the plug to the receptacle and prevents accidental disconnection.
*Secondary retainers (optional)

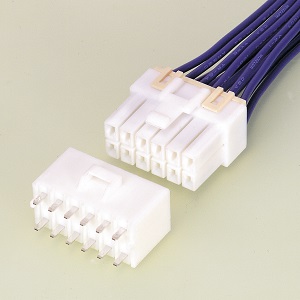

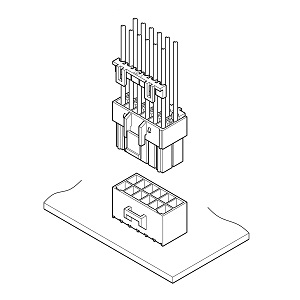

HL connector (Wire-to-Board)
