LEB connector
pdf Catalog 2D3d 3D Data
ProductIGESSTEP3D-PDF
101P-LEBSS-TFDownloadDownloadDownload
201R-LEBSS-TBDownloadDownloadDownload
302P-LEBSS-TFDownloadDownloadDownload
402R-LEBSS-TBDownloadDownloadDownload
5LEBRP-01V-SDownloadDownloadDownload
6LEBRP-02V-SDownloadDownloadDownload
7SLEB-001T-P0.2DownloadDownloadDownload
Shopping Site
Product Profile
SeriesLEB connector
CategoryBoard-to-Board Connectors
TypeAbsorbing PC board misalignment type, PC board horizontal mounting type
Crimp style, Disconnectable type
FeatureFor LED lamp
Specification
Pitch4.0mm
Current rating3A
Voltage rating300V
Product description
Considering about luminescence property of LED device, this LEB connector is designed as low profile type connector (height: 2.7mm) for LED lighting, and achieves the space saving. The horizontal connection between PCBs enables and the mechanism of absorbing the PCB misalignment has been installed considering the parallel use for the connector. Fork type contact that has a high contact pressure (receptacle side) and enough mating stroke provide the stable contact performance even if the PCB expands and contracts due to heat.

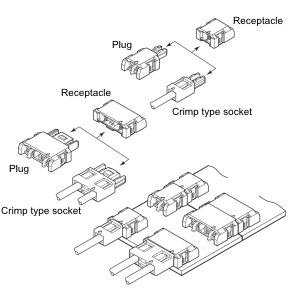

LEB connector
