J.S.T. Mfg. Co., Ltd.

PBV connector

Catalog

	Product	IGES	STEP	3D-PDF	2D-PDF
1	BM02(4.0)B-PBVSS-TF	Download	Download	Download	Download
2	BM03B-PBVSS-TF	Download	Download	Download	Download
3	BM04B-PBVSS-TF	Download	Download	Download	Download
4	BM06B-PBVSS-TF	Download	Download	Download	Download
5	BM08B-PBVSS-TF	Download	Download	Download	Download
6	BM10B-PBVSS-TF	Download	Download	Download	Download
7	BM12B-PBVSS-TF	Download	Download	Download	Download
8	BM15B-PBVSS-TF	Download	Download	Download	Download
9	PBVP-03V-S	Download	Download	Download	Download
10	PBVP-04V-S	Download	Download	Download	Download
11	PBVP-06V-S	Download	Download	Download	Download
12	PBVP-08V-S	Download	Download	Download	Download
13	PBVP-10V-S	Download	Download	Download	Download
14	PBVP-12V-S	Download	Download	Download	Download
15	PBVP-15V-S	Download	Download	Download	Download
16	SM02(4.0)B-PBVSS-TB	Download	Download	Download	Download
17	SM03B-PBVSS-TB	Download	Download	Download	Download
18	SM04B-PBVSS-TB	Download	Download	Download	Download
19	SM06B-PBVSS-TB	Download	Download	Download	Download
20	SM08B-PBVSS-TB	Download	Download	Download	Download
21	SM10B-PBVSS-TB	Download	Download	Download	Download
22	SM12B-PBVSS-TB	Download	Download	Download	Download
23	SM15B-PBVSS-TB	Download	Download	Download	Download
24	SPHD-001T-P0.5				Download
25	SPHD-002T-P0.5				Download

Shopping Site

Product Profile

Series	PBV connector
Category	Crimp Style Connectors (Wire-to-Board type)
Type	Crimp style, With secure locking device Crimp style, Disconnectable type
Feature	With secure locking device

Specification

Pitch	2.0mm
Current rating	3A (AWG#22)
Voltage rating	100V

Product description

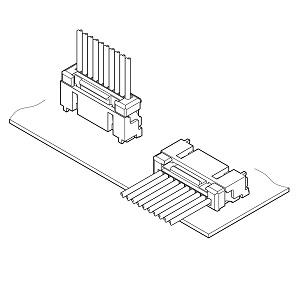

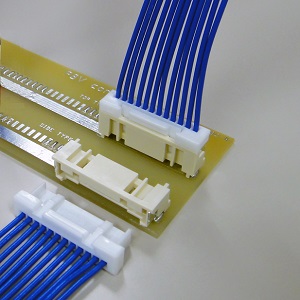

This PBV connector, which is mainly used for connecting PCB of flat television, is a crimping type connector and is designed to have a secure locking structure and a sucking area.
