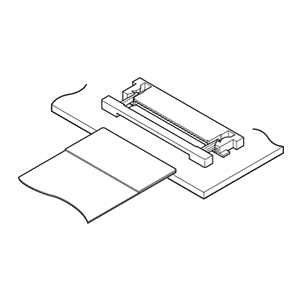

FLH connector
Product Profile
SeriesFLH connector
CategoryFFC/FPC Connectors
TypeZero insertion force type, SMT type
FeatureLow-profile
Specification
Pitch0.5mm
Current rating0.5A
Voltage rating50V
PC board mounting directionSide entry
Product description
*Thin with the mounting height of only 1.2mm, yet applicable to 0.3mm thick FPCs.
*In-line surface mount tails
*The housing is made of heat resistant resin to allow reflow soldering.
*The connector is available in either the normal or reverse configurations.

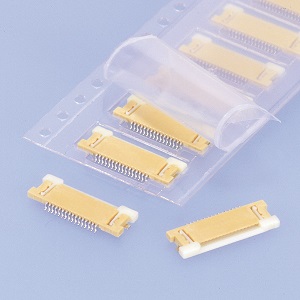

FLH connector



pdf Catalog pdf Manual 3d 3D Data
ProductIGESSTEPAcrobat3D
104FLH-RSM1-TBDownloadDownloadDownload
204FLH-SM1-TBDownloadDownloadDownload
306FLH-RSM1-TBDownloadDownloadDownload
406FLH-SM1-TBDownloadDownloadDownload
507FLH-RSM1-TBDownloadDownloadDownload
607FLH-SM1-TBDownloadDownloadDownload
708FLH-RSM1-TBDownloadDownloadDownload
808FLH-SM1-TBDownloadDownloadDownload
910FLH-RSM1-TBDownloadDownloadDownload
1010FLH-SM1-TBDownloadDownloadDownload
1111FLH-RSM1-TBDownloadDownloadDownload
1211FLH-SM1-TBDownloadDownloadDownload
1312FLH-RSM1-TBDownloadDownloadDownload
1412FLH-SM1-TBDownloadDownloadDownload
1513FLH-RSM1-TBDownloadDownloadDownload
1613FLH-SM1-TBDownloadDownloadDownload
1714FLH-RSM1-TBDownloadDownloadDownload
1814FLH-SM1-TBDownloadDownloadDownload
1915FLH-RSM1-TBDownloadDownloadDownload
2015FLH-SM1-TBDownloadDownloadDownload
2116FLH-RSM1-TBDownloadDownloadDownload
2216FLH-SM1-TBDownloadDownloadDownload
2317FLH-RSM1-TBDownloadDownloadDownload
2417FLH-SM1-TBDownloadDownloadDownload
2518FLH-RSM1-TBDownloadDownloadDownload
2618FLH-SM1-TBDownloadDownloadDownload
2719FLH-RSM1-TBDownloadDownloadDownload
2820FLH-RSM1-TBDownloadDownloadDownload
2920FLH-SM1-TBDownloadDownloadDownload
3021FLH-SM1-TBDownloadDownloadDownload
3122FLH-RSM1-TBDownloadDownloadDownload
3222FLH-SM1-TBDownloadDownloadDownload
3324FLH-RSM1-TBDownloadDownloadDownload
3424FLH-SM1-TBDownloadDownloadDownload
3526FLH-SM1-TBDownloadDownloadDownload
3628FLH-RSM1-TBDownloadDownloadDownload
3728FLH-SM1-TBDownloadDownloadDownload
3830FLH-RSM1-TBDownloadDownloadDownload
3930FLH-SM1-TBDownloadDownloadDownload
4032FLH-RSM1-TBDownloadDownloadDownload
4132FLH-SM1-TBDownloadDownloadDownload
4234FLH-RSM1-TBDownloadDownloadDownload
4340FLH-RSM1-TBDownloadDownloadDownload
4440FLH-SM1-TBDownloadDownloadDownload
