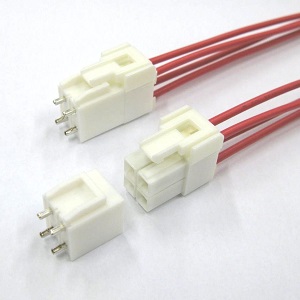

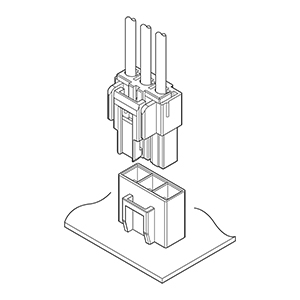

VL connector HIGH CURRENT TYPE (Wire-to-Board)
This VL connector is 6.2 mm pitch wire-to-board connector. The connector suitable for the high current has been realized by using highly-conducting material.
Product Profile
SeriesVL connector HIGH CURRENT TYPE (Wire-to-Board)
CategoryCrimp Style Connectors (Wire-to-Board type)
PC board
mounting		Through-hole
Mating
direction		Side entry, Top entry
Array
(Insertion part)		Single-row, Dual-row
LockSecure lock (Outer), Secure lock (Center)
RetainerRetainer
Connection
variations		Wire-to-wire type available
StandardCSA, TÜV, UL
Specification
Pitch6.2mm
Circuit2, 3, 4
Current
rating		23 A AC/DC (2 circuits, AWG #12)
8 A AC/DC (4 circuits, AWG #20)
Voltage
rating		600 V AC/DC
Temperature
range		-25℃ to +90℃
Insulation
resistance		1,000MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 2,000 VAC for one minute.
Conductor
size		AWG #20,#18,#16,#14,#12
0.5mm2 to 3.5mm2
Insulation O.D.φ1.9mm to φ4.1mm
RemarksWire-to-Wire type available
Catalog Catalog Manual Manual
Shopping Site VL connector HIGH CURRENT TYPE (Wire-to-Board) VL connector HIGH CURRENT TYPE (Wire-to-Board)

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1B02P-VL-1DownloadDownloadDownloadDownload
2B03P-VL-1DownloadDownloadDownloadDownload
3B04P-VL-1DownloadDownloadDownloadDownload
4B04P-VL-VN-1DownloadDownloadDownloadDownload
5S02P-VL-13DownloadDownloadDownload
6S03P-VL-13DownloadDownloadDownload
7SVSF-61T-S2.0DownloadDownloadDownloadDownload
8SVSF-81T-S2.0DownloadDownloadDownloadDownload
9VLP-02V-1DownloadDownloadDownloadDownload
10VLP-03V-1DownloadDownloadDownloadDownload
11VLP-04V-1DownloadDownloadDownloadDownload
12VLP-04VN-1DownloadDownloadDownloadDownload
13VLS-02VDownload
14VLS-03VDownload
15VLS-08VDownload
