FHJ connector

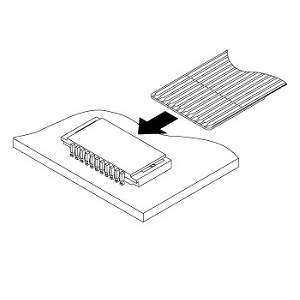

Non-ZIF type low-profile of 1.2mm mounting height. 0.3mm thick standard type FPC is applicable.

・Significant reduction in mounting space
・Heat-resistant resin material suitable for surface mount assembly
・Structured for combined use of both upper and lower contacts
Product Profile
SeriesFHJ connector
CategoryFFC/FPC Connectors
Applicable
FPC/FFC		FPC
FPC/FFC
thickness		0.3 mm
ZIF
Non-ZIF		Non-ZIF
PC board
mounting		SMT
Mating
direction		Side entry
Contact
surface side		Both sides contact
StandardUL
Specification
Pitch0.5mm
Circuit5, 6, 7, 8, 10, 11, 12, 14, 16, 18, 20, 21, 24
Current
rating		0.5 A AC/DC
Voltage
rating		50 V AC/DC
Temperature
range		-25℃ to +85℃
Insulation
resistance		500MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 200 VAC for one minute.
Catalog Catalog Manual Manual
Shopping Site FHJ connector FHJ connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
105FHJ-SM1-TBDownloadDownloadDownloadDownload
206FHJ-SM1-TBDownloadDownloadDownloadDownload
307FHJ-SM1-TBDownloadDownloadDownloadDownload
408FHJ-SM1-TBDownloadDownloadDownloadDownload
510FHJ-SM1-TBDownloadDownloadDownloadDownload
611FHJ-SM1-TBDownloadDownloadDownloadDownload
712FHJ-SM1-TBDownloadDownloadDownloadDownload
814FHJ-SM1-TBDownloadDownloadDownloadDownload
916FHJ-SM1-TBDownloadDownloadDownloadDownload
1018FHJ-SM1-TBDownloadDownloadDownloadDownload
1120FHJ-SM1-TBDownloadDownloadDownloadDownload
1221FHJ-SM1-TBDownloadDownloadDownloadDownload
1324FHJ-SM1-TBDownloadDownloadDownloadDownload
