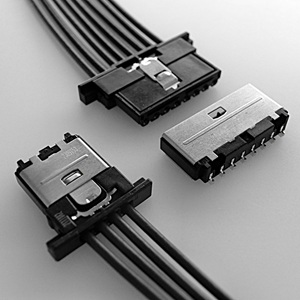

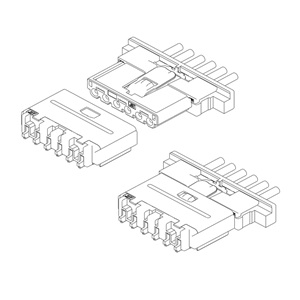

ULH connector with Flange Type
This SMT connector that achieves the world's smallest class connector height of 3.5 mm as a crimped specification while having performance that meets the in-vehicle standards USCAR-2 and LV214. This type that can insert by mechanical pushing with flat surface on both ends of female connector.
Product Profile
SeriesULH connector with Flange Type
CategoryAutomotive Connectors
Sub
category		Wire-to-Board
PC board
mounting		SMT
Mating
direction		Side entry
Array
(Insertion part)		Single-row
LockSecure lock (Inner)
Mating
assist		Keying
StandardLV214, USCAR
OthersHalogen-free
Specification
Pitch2mm
Circuit4, 6, 8, 10
Current
rating		5 A AC/DC
Voltage
rating		100 V AC/DC
Temperature
range		-40℃ to +125℃
Insulation
resistance		100MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,000 VAC for one minute.
Conductor
size		0.3mm2 to 0.35mm2
Insulation O.D.φ1.2mm to φ1.5mm
Catalog Catalog Manual Manual
ULH connector with Flange Type ULH connector with Flange Type

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SULH-A021GF-0.5
-
-
-
Download
2SULH-A021T-0.5
-
-
-
Download
3ULHRR-04V-1B1-K(HF)DownloadDownloadDownloadDownload
4ULHRR-06V-1B1-K(HF)DownloadDownloadDownloadDownload
5ULHRR-08V-1B1-K(HF)DownloadDownloadDownloadDownload
6ULHRR-10V-1B1-K(HF)DownloadDownloadDownloadDownload
7ULHCB-04V-A-K(HF)DownloadDownloadDownloadDownload
8ULHCB-06V-A-K(HF)DownloadDownloadDownloadDownload
9ULHCB-08V-A-K(HF)DownloadDownloadDownloadDownload
10ULHCB-10V-A-K(HF)DownloadDownloadDownloadDownload
11SM04B-ULHK-1GFA1-ETB(HF)DownloadDownloadDownloadDownload
12SM06B-ULHK-1GFA1-ETB(HF)DownloadDownloadDownloadDownload
13SM08B-ULHK-1GFA1-ETB(HF)DownloadDownloadDownloadDownload
14SM10B-ULHK-1GFA1-ETB(HF)DownloadDownloadDownloadDownload
15SM04B-ULHK-1TA1-ETB(HF)DownloadDownloadDownloadDownload
16SM06B-ULHK-1TA1-ETB(HF)DownloadDownloadDownloadDownload
17SM08B-ULHK-1TA1-ETB(HF)DownloadDownloadDownloadDownload
18SM10B-ULHK-1TA1-ETB(HF)DownloadDownloadDownloadDownload
19SM04B-ULHK-1GFD1-ETB(HF)DownloadDownloadDownloadDownload
20SM06B-ULHK-1GFD1-ETB(HF)DownloadDownloadDownloadDownload
21SM08B-ULHK-1GFD1-ETB(HF)DownloadDownloadDownloadDownload
22SM10B-ULHK-1GFD1-ETB(HF)DownloadDownloadDownloadDownload
23SM04B-ULHK-1TD1-ETB(HF)DownloadDownloadDownloadDownload
24SM06B-ULHK-1TD1-ETB(HF)DownloadDownloadDownloadDownload
25SM08B-ULHK-1TD1-ETB(HF)DownloadDownloadDownloadDownload
26SM10B-ULHK-1TD1-ETB(HF)DownloadDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
