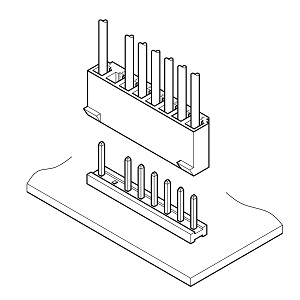

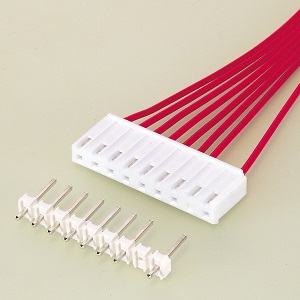

VB connector
This large current carrying capacity connector for printed circuit boards can be used with primary power supply circuits of consumer electronic products and various other circuits requiring large currents.
Product Profile
SeriesVB connector
CategoryCrimp Style Connectors (Wire-to-Board type)
PC board
mounting		Through-hole
Mating
direction		Side entry, Top entry
Array
(Insertion part)		Single-row
StandardCSA, UL
Specification
Pitch5.08 mm
Circuit2, 3, 4, 5, 6, 7, 8, 9, 12
Current
rating		7 A AC/DC (AWG #18)
Voltage
rating		250 V AC/DC
Temperature
range		-25 ℃ to +85 ℃
Insulation
resistance		500 MΩ min.
Withstanding
voltage		There shall be no breakdown or flashover while applying 1,500 VAC for one minute.
Conductor
size		AWG # 22 , # 20 , # 18
0.33 mm2 to 0.83 mm2
Insulation O.D.φ 1.7 mm to φ 3 mm
Catalog Catalog
VB connector VB connector

3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1SVH-21T-P1.1
-
-
-
Download
2VBR-2DownloadDownloadDownloadDownload
3VBR-2(3)DownloadDownloadDownload
4VBR-3DownloadDownloadDownloadDownload
5VBR-3(4)DownloadDownloadDownloadDownload
6VBR-4(5)DownloadDownloadDownloadDownload
7VBR-5(6)DownloadDownloadDownloadDownload
8VBR-6(7)DownloadDownloadDownloadDownload
9VBR-7(8)DownloadDownloadDownloadDownload
10VBR-8(9)DownloadDownloadDownloadDownload
11VBR-9(10)DownloadDownloadDownloadDownload
12VBR-12(13)DownloadDownloadDownloadDownload
13B2P-VB-2DownloadDownloadDownloadDownload
14B2P3-VB-2DownloadDownloadDownloadDownload
15B3P-VB-2DownloadDownloadDownloadDownload
16B3P4-VB-2DownloadDownloadDownloadDownload
17B4P-VB-2DownloadDownloadDownloadDownload
18B4P5-VB-2DownloadDownloadDownloadDownload
19B5P6-VB-2DownloadDownloadDownloadDownload
20B6P7-VB-2DownloadDownloadDownloadDownload
21B7P8-VB-2DownloadDownloadDownloadDownload
22B8P9-VB-2DownloadDownloadDownloadDownload
23B9P10-VB-2DownloadDownloadDownloadDownload
24B12P13-VB-2DownloadDownloadDownloadDownload
25B12P13S-VBDownloadDownloadDownload
[Notes]
"-"  in the table: Indicates products not listed.
"+" in the table: Indicates products with additional specifications
(such as different materials, packaging, or key variations) for the representative specifications.
Please use the data for the representative specification with a different part number suffix
for the same number of circuits.
Blank cells: Indicates products that are being prepared for listing.
