PUD connector
pdf Catalog pdf Manual 2D3d 3D/2D Data
ProductIGESSTEP3D-PDF2D-PDF
1B08B-PUDSSDownloadDownloadDownloadDownload
2B08B-PUDSS-1DownloadDownloadDownloadDownload
3B10B-PUDSSDownloadDownloadDownloadDownload
4B10B-PUDSS-1DownloadDownloadDownloadDownload
5B12B-PUDSSDownloadDownloadDownloadDownload
6B12B-PUDSS-1DownloadDownloadDownloadDownload
7B14B-PUDSSDownloadDownloadDownloadDownload
8B14B-PUDSS-1DownloadDownloadDownloadDownload
9B16B-PUDSSDownloadDownloadDownloadDownload
10B16B-PUDSS-1DownloadDownloadDownloadDownload
11B18B-PUDSSDownloadDownloadDownloadDownload
12B18B-PUDSS-1DownloadDownloadDownloadDownload
13B20B-PUDSSDownloadDownloadDownloadDownload
14B20B-PUDSS-1DownloadDownloadDownloadDownload
15B22B-PUDSSDownloadDownloadDownloadDownload
16B22B-PUDSS-1DownloadDownloadDownloadDownload
17B24B-PUDSSDownloadDownloadDownloadDownload
18B24B-PUDSS-1DownloadDownloadDownloadDownload
19B26B-PUDSSDownloadDownloadDownloadDownload
20B26B-PUDSS-1DownloadDownloadDownloadDownload
21B28B-PUDSSDownloadDownloadDownloadDownload
22B28B-PUDSS-1DownloadDownloadDownloadDownload
23B30B-PUDSSDownloadDownloadDownloadDownload
24B30B-PUDSS-1DownloadDownloadDownloadDownload
25B32B-PUDSSDownloadDownloadDownloadDownload
26B32B-PUDSS-1DownloadDownloadDownloadDownload
27B34B-PUDSSDownloadDownloadDownloadDownload
28B34B-PUDSS-1DownloadDownloadDownloadDownload
29B36B-PUDSSDownloadDownloadDownloadDownload
30B36B-PUDSS-1DownloadDownloadDownloadDownload
31B38B-PUDSSDownloadDownloadDownloadDownload
32B38B-PUDSS-1DownloadDownloadDownloadDownload
33B40B-PUDSSDownloadDownloadDownloadDownload
34B40B-PUDSS-1DownloadDownloadDownloadDownload
35BM10B-PUDSS-TFCDownloadDownloadDownloadDownload
36BM12B-PUDSS-TFCDownloadDownloadDownloadDownload
37BM14B-PUDSS-TFCDownloadDownloadDownloadDownload
38BM16B-PUDSS-TFCDownloadDownloadDownloadDownload
39BM18B-PUDSS-TFCDownloadDownloadDownloadDownload
40BM20B-PUDSS-TFCDownloadDownloadDownloadDownload
41BM22B-PUDSS-TFCDownloadDownloadDownloadDownload
42BM24B-PUDSS-TFCDownloadDownloadDownloadDownload
43BM26B-PUDSS-TFCDownloadDownloadDownloadDownload
44BM28B-PUDSS-TFCDownloadDownloadDownloadDownload
45BM30B-PUDSS-TFCDownloadDownloadDownloadDownload
46BM32B-PUDSS-TFCDownloadDownloadDownloadDownload
47BM34B-PUDSS-TFCDownloadDownloadDownloadDownload
48BM36B-PUDSS-TFCDownloadDownloadDownloadDownload
49BM38B-PUDSS-TFCDownloadDownloadDownloadDownload
50BM40B-PUDSS-TFCDownloadDownloadDownloadDownload
51PUDP-08V-SDownloadDownloadDownloadDownload
52PUDP-10V-SDownloadDownloadDownloadDownload
53PUDP-12V-SDownloadDownloadDownloadDownload
54PUDP-14V-SDownloadDownloadDownloadDownload
55PUDP-16V-SDownloadDownloadDownloadDownload
56PUDP-18V-SDownloadDownloadDownloadDownload
57PUDP-20V-SDownloadDownloadDownloadDownload
58PUDP-22V-SDownloadDownloadDownloadDownload
59PUDP-24V-SDownloadDownloadDownloadDownload
60PUDP-26V-SDownloadDownloadDownloadDownload
61PUDP-28V-SDownloadDownloadDownloadDownload
62PUDP-30V-SDownloadDownloadDownloadDownload
63PUDP-32V-SDownloadDownloadDownloadDownload
64PUDP-34V-SDownloadDownloadDownloadDownload
65PUDP-36V-SDownloadDownloadDownloadDownload
66PUDP-38V-SDownloadDownloadDownloadDownload
67PUDP-40V-SDownloadDownloadDownloadDownload
68S08B-PUDSS-1DownloadDownloadDownloadDownload
69S10B-PUDSS-1DownloadDownloadDownloadDownload
70S12B-PUDSS-1DownloadDownloadDownloadDownload
71S14B-PUDSS-1DownloadDownloadDownloadDownload
72S16B-PUDSS-1DownloadDownloadDownloadDownload
73S18B-PUDSS-1DownloadDownloadDownloadDownload
74S20B-PUDSS-1DownloadDownloadDownloadDownload
75S22B-PUDSS-1DownloadDownloadDownloadDownload
76S24B-PUDSS-1DownloadDownloadDownloadDownload
77S26B-PUDSS-1DownloadDownloadDownloadDownload
78S28B-PUDSS-1DownloadDownloadDownloadDownload
79S30B-PUDSS-1DownloadDownloadDownloadDownload
80S32B-PUDSS-1DownloadDownloadDownloadDownload
81S34B-PUDSS-1DownloadDownloadDownloadDownload
82S36B-PUDSS-1DownloadDownloadDownloadDownload
83S38B-PUDSS-1DownloadDownloadDownloadDownload
84S40B-PUDSS-1DownloadDownloadDownloadDownload
85SM10B-PUDK-D-ETB(HF)DownloadDownloadDownloadDownload
86SM12B-PUDK-D-ETB(HF)DownloadDownloadDownloadDownload
87SM16B-PUDK-D-ETB(HF)DownloadDownloadDownloadDownload
88SM22B-PUDK-D-ETB(HF)DownloadDownloadDownloadDownload
89SPUD-001T-P0.5DownloadDownloadDownloadDownload
90SPUD-002T-P0.5DownloadDownloadDownloadDownload
Shopping Site
Product Profile
SeriesPUD connector
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeCrimp style, With secure locking device
Disconnectable type
FeatureWith secure locking device
Specification
Pitch2.0mm
Current rating3A (AWG#22)
Voltage rating250V
PC board mounting directionTop entry, Side entry
Product description

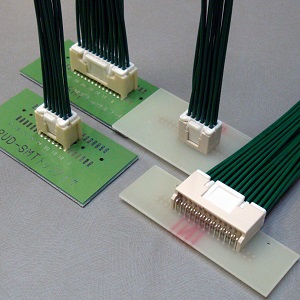

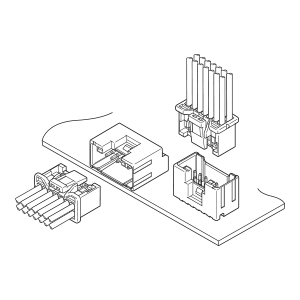

This is a 2.0 mm pitch, dual-row, wire-to-board connector with a strong-locking mechanism. It provides stable contact performance against vibration and prying while achieving low insertion force. Aside from the locking tab structure, the connector housing and header perfectly align which allows for high precision in facilitating board mount design.
