ZH connector
pdf Catalog pdf Manual 2D3d 3D Data
ProductIGESSTEP3D-PDF
1B10B-ZRDownloadDownloadDownload
2B10B-ZR-3.4DownloadDownloadDownload
3B10B-ZR-SM4-TFDownloadDownloadDownload
4B11B-ZRDownloadDownloadDownload
5B11B-ZR-3.4DownloadDownloadDownload
6B11B-ZR-SM4-TFDownloadDownloadDownload
7B12B-ZRDownloadDownloadDownload
8B12B-ZR-3.4DownloadDownloadDownload
9B12B-ZR-SM4-TFDownloadDownloadDownload
10B13B-ZRDownloadDownloadDownload
11B13B-ZR-3.4DownloadDownloadDownload
12B13B-ZR-SM4-TFDownloadDownloadDownload
13B2B-ZRDownloadDownloadDownload
14B2B-ZR-3.4DownloadDownloadDownload
15B2B-ZR-SM4-TFDownloadDownloadDownload
16B3B-ZRDownloadDownloadDownload
17B3B-ZR-3.4DownloadDownloadDownload
18B3B-ZR-SM4-TFDownloadDownloadDownload
19B4B-ZRDownloadDownloadDownload
20B4B-ZR-3.4DownloadDownloadDownload
21B4B-ZR-SM4-TFDownloadDownloadDownload
22B5B-ZRDownloadDownloadDownload
23B5B-ZR-3.4DownloadDownloadDownload
24B5B-ZR-SM4-TFDownloadDownloadDownload
25B6B-ZRDownloadDownloadDownload
26B6B-ZR-3.4DownloadDownloadDownload
27B6B-ZR-SM4-TFDownloadDownloadDownload
28B7B-ZRDownloadDownloadDownload
29B7B-ZR-3.4DownloadDownloadDownload
30B7B-ZR-SM4-TFDownloadDownloadDownload
31B8B-ZRDownloadDownloadDownload
32B8B-ZR-3.4DownloadDownloadDownload
33B8B-ZR-SM4-TFDownloadDownloadDownload
34B9B-ZRDownloadDownloadDownload
35B9B-ZR-3.4DownloadDownloadDownload
36B9B-ZR-SM4-TFDownloadDownloadDownload
37S10B-ZRDownloadDownloadDownload
38S10B-ZR-3.4DownloadDownloadDownload
39S10B-ZR-SM4A-TFDownloadDownloadDownload
40S11B-ZRDownloadDownloadDownload
41S11B-ZR-3.4DownloadDownloadDownload
42S11B-ZR-SM4A-TFDownloadDownloadDownload
43S12B-ZRDownloadDownloadDownload
44S12B-ZR-3.4DownloadDownloadDownload
45S12B-ZR-SM4A-TFDownloadDownloadDownload
46S13B-ZRDownloadDownloadDownload
47S13B-ZR-3.4DownloadDownloadDownload
48S13B-ZR-SM2-TFDownloadDownloadDownload
49S13B-ZR-SM4A-TFDownloadDownloadDownload
50S2B-ZRDownloadDownloadDownload
51S2B-ZR-3.4DownloadDownloadDownload
52S2B-ZR-SM2-TFDownloadDownloadDownload
53S2B-ZR-SM4A-TFDownloadDownloadDownload
54S3B-ZRDownloadDownloadDownload
55S3B-ZR-3.4DownloadDownloadDownload
56S3B-ZR-SM2-TFDownloadDownloadDownload
57S3B-ZR-SM4A-TFDownloadDownloadDownload
58S4B-ZRDownloadDownloadDownload
59S4B-ZR-3.4DownloadDownloadDownload
60S4B-ZR-SM2-TFDownloadDownloadDownload
61S4B-ZR-SM4A-TFDownloadDownloadDownload
62S5B-ZRDownloadDownloadDownload
63S5B-ZR-3.4DownloadDownloadDownload
64S5B-ZR-SM2-TFDownloadDownloadDownload
65S5B-ZR-SM4A-TFDownloadDownloadDownload
66S6B-ZRDownloadDownloadDownload
67S6B-ZR-3.4DownloadDownloadDownload
68S6B-ZR-SM2-TFDownloadDownloadDownload
69S6B-ZR-SM4A-TFDownloadDownloadDownload
70S7B-ZRDownloadDownloadDownload
71S7B-ZR-3.4DownloadDownloadDownload
72S7B-ZR-SM4A-TFDownloadDownloadDownload
73S8B-ZRDownloadDownloadDownload
74S8B-ZR-3.4DownloadDownloadDownload
75S8B-ZR-SM2-TFDownloadDownloadDownload
76S8B-ZR-SM4A-TFDownloadDownloadDownload
77S9B-ZRDownloadDownloadDownload
78S9B-ZR-3.4DownloadDownloadDownload
79S9B-ZR-SM4A-TFDownloadDownloadDownload
80SZH-002T-P0.5DownloadDownloadDownload
81SZH-003T-P0.5DownloadDownloadDownload
82ZHR-10DownloadDownloadDownload
83ZHR-11DownloadDownloadDownload
84ZHR-12DownloadDownloadDownload
85ZHR-13DownloadDownloadDownload
86ZHR-2DownloadDownloadDownload
87ZHR-3DownloadDownloadDownload
88ZHR-4DownloadDownloadDownload
89ZHR-5DownloadDownloadDownload
90ZHR-6DownloadDownloadDownload
91ZHR-7DownloadDownloadDownload
92ZHR-8DownloadDownloadDownload
93ZHR-9DownloadDownloadDownload
Shopping Site
Product Profile
SeriesZH connector
CategoryCrimp Style Connectors (Wire-to-Board type)
TypeCrimp style, Compact type
Disconnectable type
Specification
Pitch1.5mm
Current rating1A (AWG#26)
Voltage rating50V
PC board mounting directionTop entry, Side entry
Product description

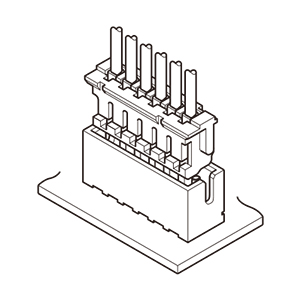

This is a 1.5 mm pitch wire-to-board connector with 5.9 mm in mounting height and 3.5 mm in depth when mated with the top-entry type through-hole header. The housing lance design improves contact insertion workability. In addition, the combination of high contact force and round pins provides stable contact performance.
